3D affordance reasoning plays a critical role in associating human instructions with the functional regions of 3D objects, facilitating precise, task-oriented manipulations in embodied AI. However, current methods, which predominantly depend on sparse 3D point clouds, exhibit limited generalizability and robustness due to their sensitivity to coordinate variations and the inherent sparsity of the data. By contrast, 3D Gaussian Splatting (3DGS) delivers high-fidelity, real-time rendering with minimal computational overhead by representing scenes as dense, continuous distributions. This positions 3DGS as a highly effective approach for capturing fine-grained affordance details and improving recognition accuracy. Nevertheless, its full potential remains largely untapped due to the absence of large-scale, 3DGS-specific affordance datasets. To overcome these limitations, we present 3DAffordSplat, the first large-scale, multi-modal dataset tailored for 3DGS-based affordance reasoning. This dataset includes 23k Gaussian instances, 8.3k point cloud instances, and 6.6k manually annotated affordance labels, encompassing 21 object categories and 18 affordance types. Building upon this dataset, we introduce AffordSplatNet, a novel model specifically designed for affordance reasoning using 3DGS representations. AffordSplatNet features an innovative cross-modal structure alignment module that exploits structural consistency priors to align 3D point cloud and 3DGS representations, resulting in enhanced affordance recognition accuracy. Extensive experiments demonstrate that the 3DAffordSplat dataset significantly advances affordance learning within the 3DGS domain, while AffordSplatNet consistently outperforms existing methods across both seen and unseen settings, highlighting its robust generalization capabilities.
This project is for research purpose only, please contact us for the licence of commercial use. For any other questions please contact (weizm6@mail2.sysu.edu.cn, linjy279@mail2.sysu.edu.cn or liuy856@mail.sysu.edu.cn).

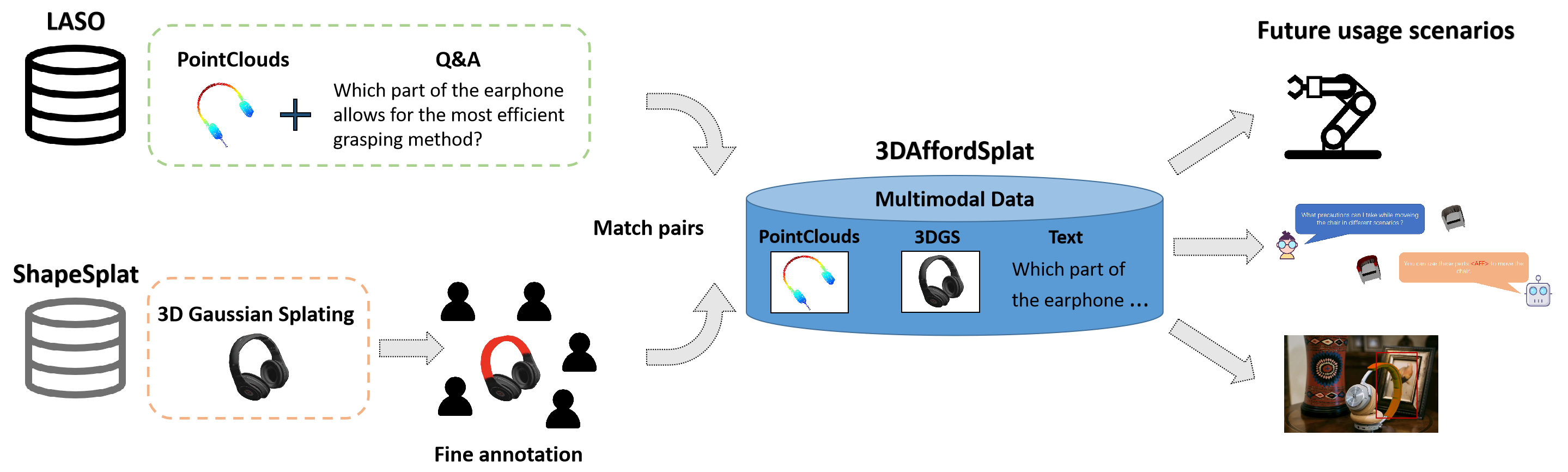

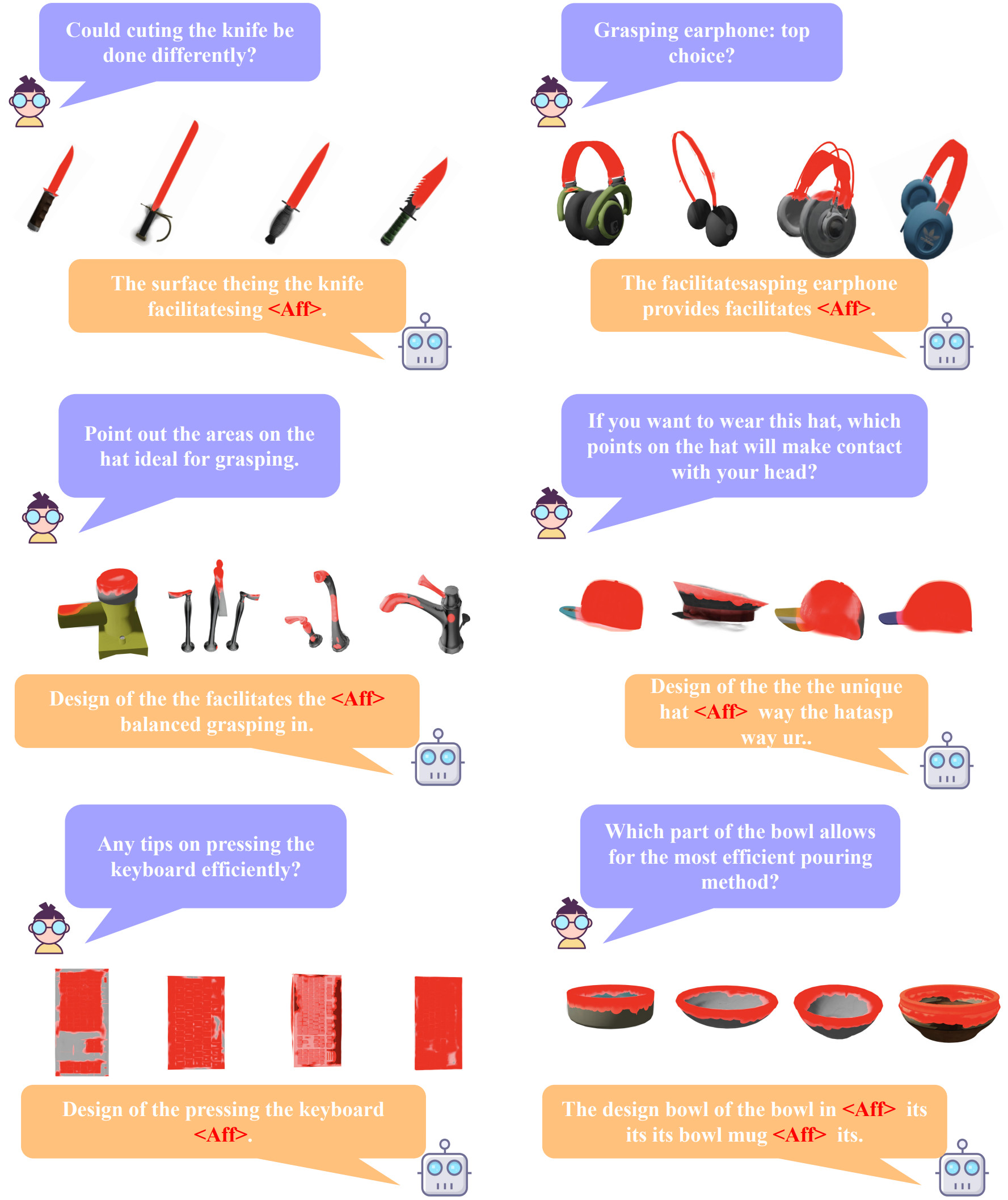

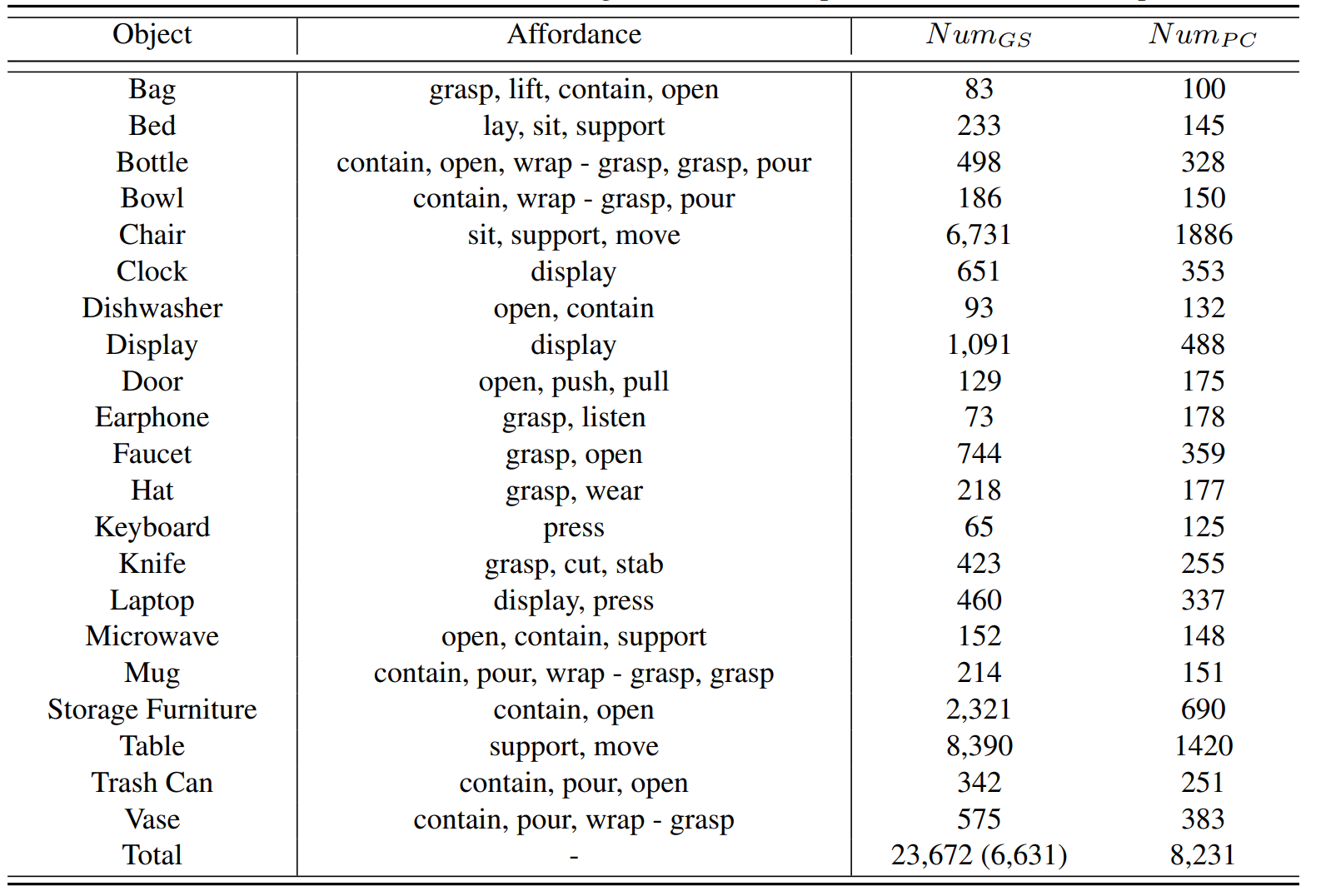

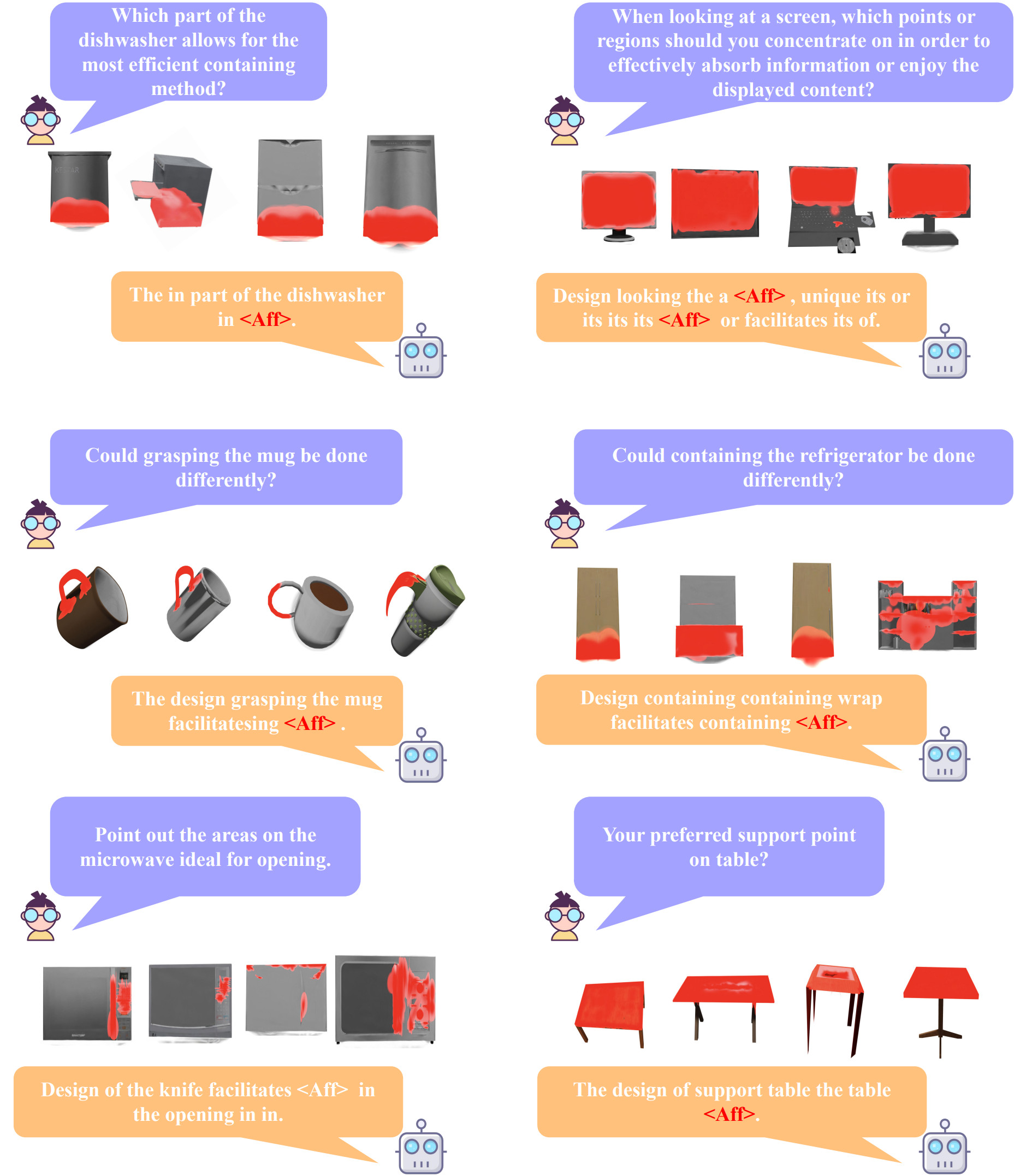

Dataset overview. (a) Category distribution in 3DAffordSplat. (b) Numbers of 3DGS annotations in each affordance category. (c) Representative data examples from 3DAffordSplat (3DGS and point cloud, with affordance annotations and questions), the colored region in point clouds and 3DGS is the affordance annotation. (d) Examples of affordance reasoning.
Architecture Overview. AffordSplatNet (a) processes 3D Gaussians and human instructions through a hierarchical pipeline. It extracts multi-granularity features from Gaussians, while a pre-trained language model infers an ⟨Aff⟩ token from the text query, representing an intermediate segmentation result. These modalities are fused through attention mechanisms, with granularity selection prioritizing task-relevant spatial scales. The selected features decode into dynamic kernels for efficient affordance mask generation. To enhance 3D structural learning, Cross-Modal Structure Alignment (CMSA) (b) module aligns the Affordance regions and overall structural relations between the Gaussian and point cloud data at the structural level.

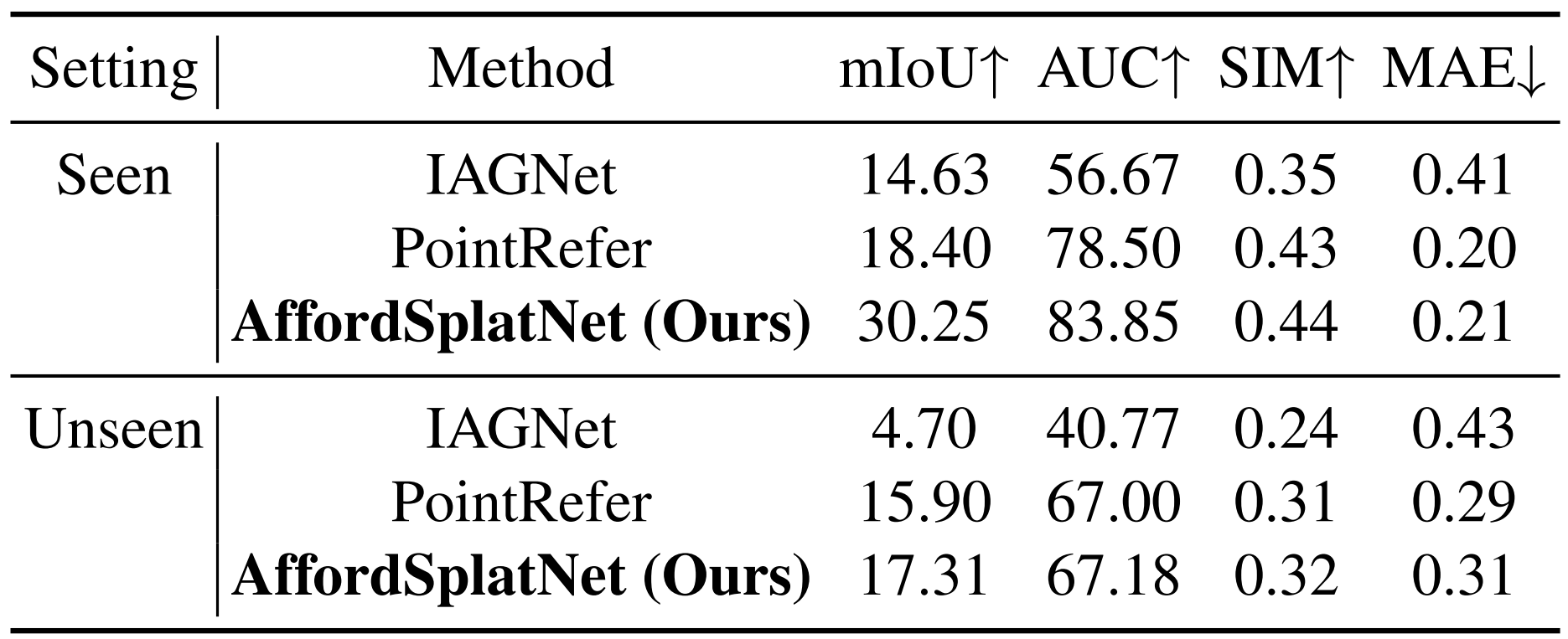

We compare the performance of AffordSplatNet with state-of-the-art point cloud models on 3DAffordSplat. AffordSplatNet outperforms other models in 3DGS Affordance Reasoning.
@misc{wei20253daffordsplatefficientaffordancereasoning,
title={3DAffordSplat: Efficient Affordance Reasoning with 3D Gaussians},
author={Zeming wei and Junyi Lin and Yang Liu and Weixing Chen and Jingzhou Luo and Guanbin Li and Liang Lin},
year={2025},
eprint={2504.11218},
archivePrefix={arXiv},
primaryClass={cs.CV},
url={https://arxiv.org/abs/2504.11218},
}
